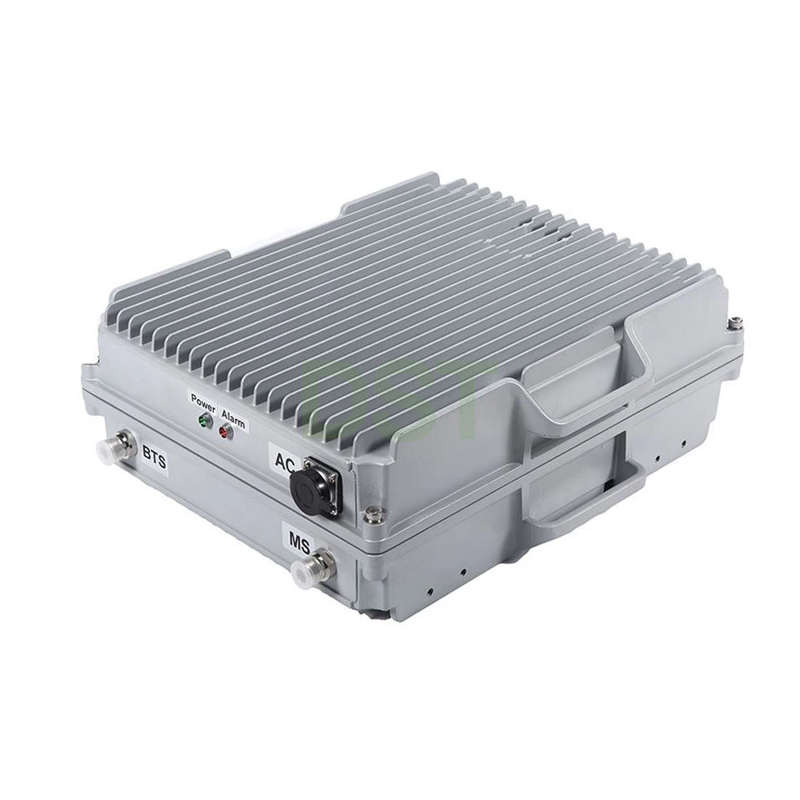

20dBm Quad Band-Selective Repeater for Cellular Network GSM LTE CDMA DCS

1. MGC available for both UL & DL.

2. AGC Alarms if interference occurs.

3. Auto shut off once severe self-oscillation.

4. Intelligent mode setting.

6. Antenna isolation testing automatically.

7. High voice quality and fast data transmission.

8. Ideal solution for operators.

support hotline

086-13480670924

Product Details
Online Consultation

Product Details

With the use of quad band-selected repeater, operators can improve cellular signals across a number of mobile network frequency sub bands for greater conversation quality and faster data transmission. The quad band-selective repeater employs contemporary methods to lessen any potential uplink interference. The extraordinary out band rejection of a signal repeater installation will also help operators. It is an excellent instrument for signal amplification because it is so easy to set up.

The quad band-selection repeater has a maximum coverage area of 15,000 square feet.

Specs

Parameters		Uplink	Downlink
Frequency Range	LTE800	832 ~ 862MHz	791 ~ 821MHz
	GSM&EGSM	880 ~ 915MHz	925 ~ 960MHz
	CDMA800	824~849MHz	869~894MHz
	DCS	1710 ~ 1785MHz	1805 ~ 1880MHz
	WCDMA	1920 ~ 1980MHz	2110 ~ 2170MHz
	LTE2600	2500~2570MHz	2620 ~ 2690MHz
Bandwidth		various bandwidth is available upon request
Maximum Gain		≥ 65dB	≥ 70dB
Output Power		≥ 15dBm	≥ 20dBm
MGC (Manual Gain Control)		31dB
AGC (Automatic Gain Control)		≧ 25dB
Spurious Emission	9KHz~1GHz	≦ -36dBm
	1GHz~12.75GHz	≦ -30dBm
Inter-modulation Products	9KHz~1GHz	≦ -36dBm
	1GHz~12.75GHz	≦ -30dBm
Noise Figure		≦ 6dB
Out of Band Gain		±400KHz	< 50dB
		±600KHz	< 40dB
		±1MHz	< 35dB
		±5MHz	< 25dB
VSWR		≦ 2.0
Group Delay		≦1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Alarm Red when ALC control over 10dB
	ISO LED	Alarm turns Red when ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		70W
Power Supply		Input: AC 110~240V; Output: DC 12V/12.5A
Operating Temperature		-10℃~50℃
Environment Conditions		IP55
Dimensions (L x W x H)		375295134mm
Weight (N.W)		≤12KG
