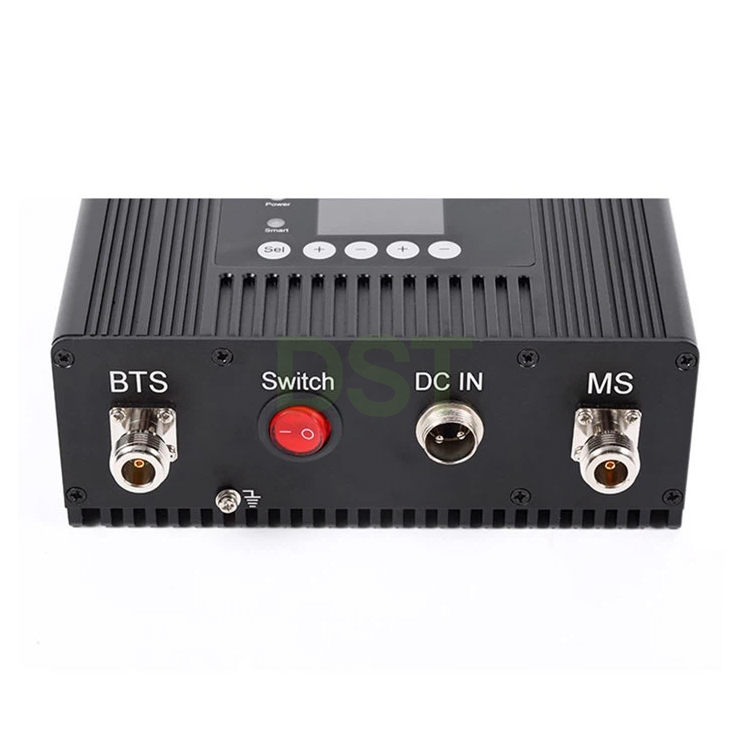

4 bands Signal Booster GSM900 DCS1800 CDMA850 PCS1900 23dBm

1. Compact size with stable performance.

2. MGC available for both UL & DL.

3. AGC Alarms if interference occurs.

4. Auto shut off once severe self-oscillation.

5. LCD display to make operation easily.

6. Cost-effective for practical solutions.

7. Antenna isolation testing automatically.

8. High voice quality and fast data transmission.

9. Simple Structure & Easy installation.

support hotline

086-13480670924

Product Details
Online Consultation

Product Details

DST Mobile Signal Repeaters are able to amplify any one of 2G network systems such as GSM900, DCS1800, CDMA850, PCS1900 etc. They are designed to amplify weak cellular signals from the nearest cell tower, improving the strength and quality of a mobile signal.

Specs

Parameters		Uplink	Downlink
Frequency Range	UMTS800	830-840MHz	875-885MHz
	WCDMA2100	1920~ 1980MHz	2110~ 2170MHz
	AWS1700	1710 ~ 1755MHz	2110 ~ 2155MHz
	PCS1900	1850-1910MHz	1930-1990MHz
Operation Bandwidth (-3dB)		Wide Band
Maximum Gain		65dB	70dB
Output Power		15dBm	23dBm
MGC (Manual Gain Control)		31dB range/1dB step
AGC (Automatic Gain Control)		≧25dB
Noise Figure		≤ 6dB
VSWR		≦2.0
Group Delay		≤1μs
LED Alarm	Power LED	DC ON/OFF
	AGC LED	Red, ALC≥10dB
	ISO LED	Red, ALC≥25dB, RF stop working
RF Connector		N-Female
Impedance		50Ω
Power Consumption		5W
Power Supply		Input: AC 110~240V; Output: DC 5.9V/3A
Operating Temperature		-10℃~50℃
Environment Conditions		IP30
Dimensions (Lx W x H)		12817065mm
Weight (N.W)		≤1.5KG
